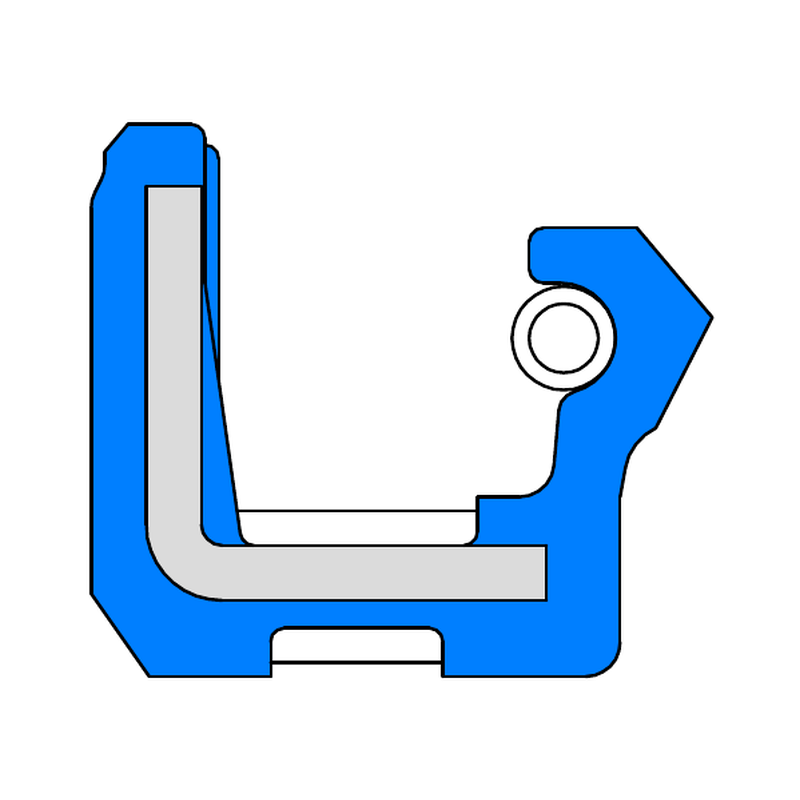

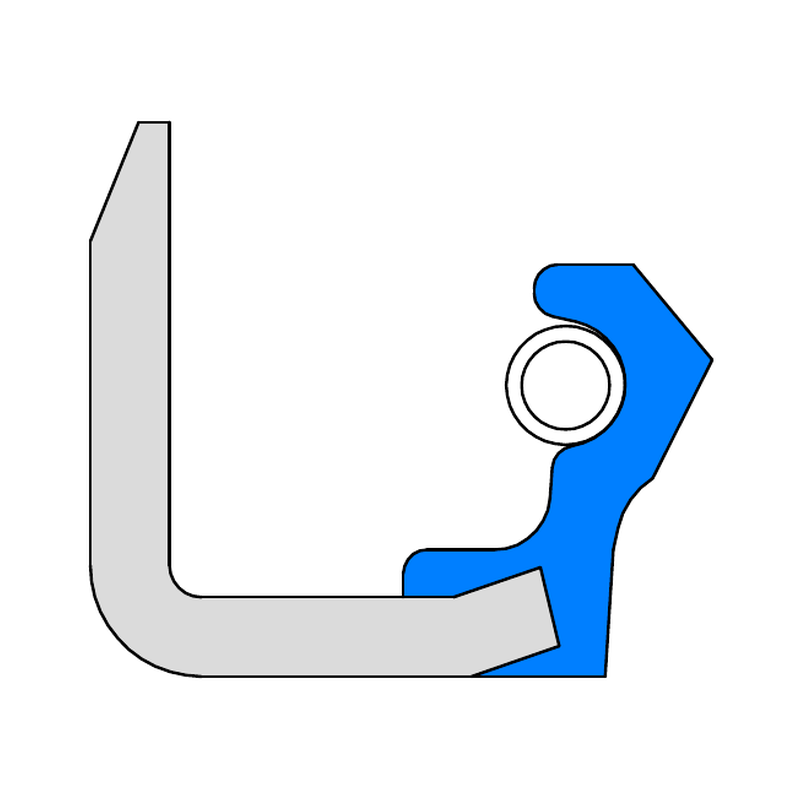

A basic rotary-shaft seal with a compact single-lip design focused on retaining internal media. The built-in garter spring maintains sealing force for stable long-term operation.

Applications:Industrial gearboxes, harmonic drives, motors, gearboxes for agricultural and construction machinery

Sealing media:Engine oil, hydraulic oil, gear oil, diesel fuel, gasoline

Lip materials:

NBR (-40°C to 120°C)
FKM (-20°C to 200°C)

Surface speed:NBR ≤ 15 m/s
FKM ≤ 35 m/s

Pressure:Max. 0.3 bar
