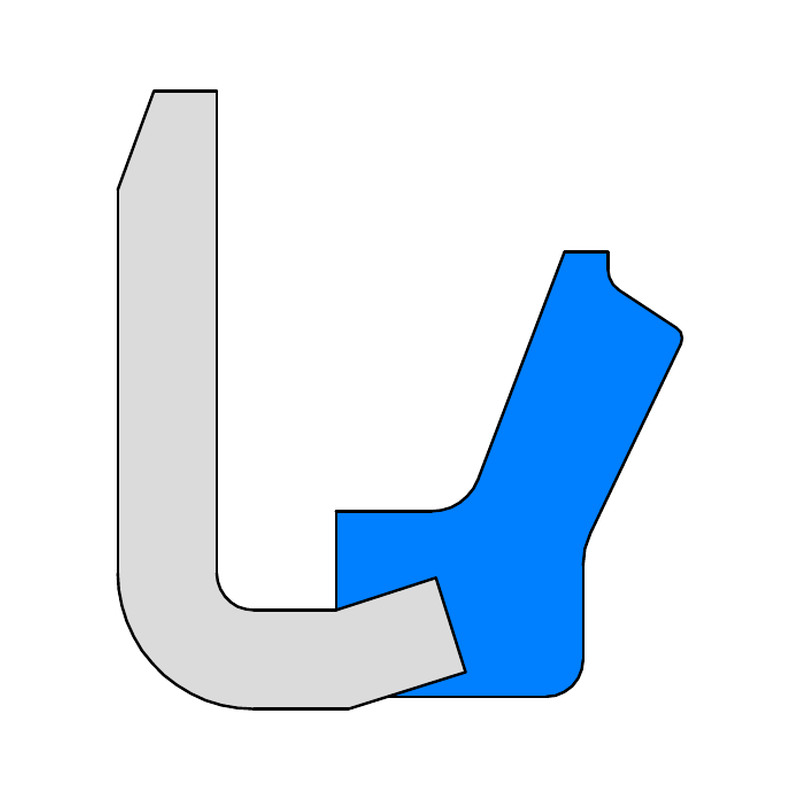

The single-lip springless oil seal is the simplest rotary-shaft sealing solution. With no spring, it seals entirely through the radial pressure created by the elastomer lip’s interference with the shaft.

Applications:Electric vehicles; motors; pivot bearings and actuator seals; vertical thrust bearings; power-system designs

Sealing media:Grease, splash fluids, and similar media

Lip materials:

NBR (-40°C to 120°C)
FKM (-20°C to 200°C)

Surface speed:NBR ≤ 8 m/s
FKM ≤ 15 m/s

Pressure:Max. 0.3 bar
