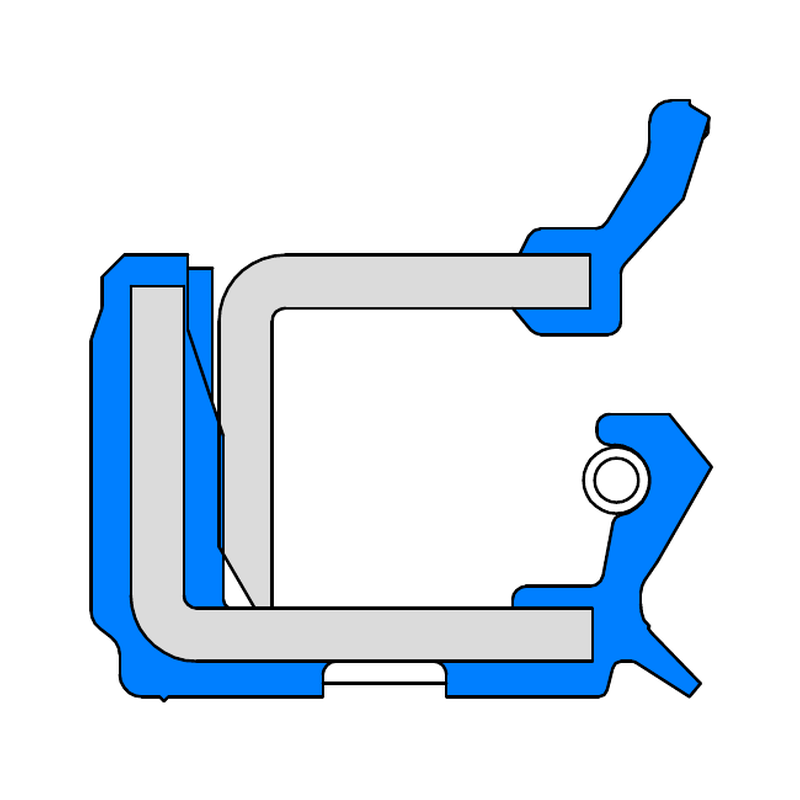

This assembly combines an outer seal with an inner seal. The inner seal has two lips, which together with the outer seal’s primary lip provide three sealing lips in total.

Applications:Industrial gearboxes and transmissions; RV reducers for industrial robots

Sealing media:Lubricating oil, gear oil, and similar media

Lip materials:

NBR (-40°C to 120°C)
FKM (-20°C to 200°C)

Surface speed:Maximum speed 6 m/s

Pressure:Max. 0.5 bar
