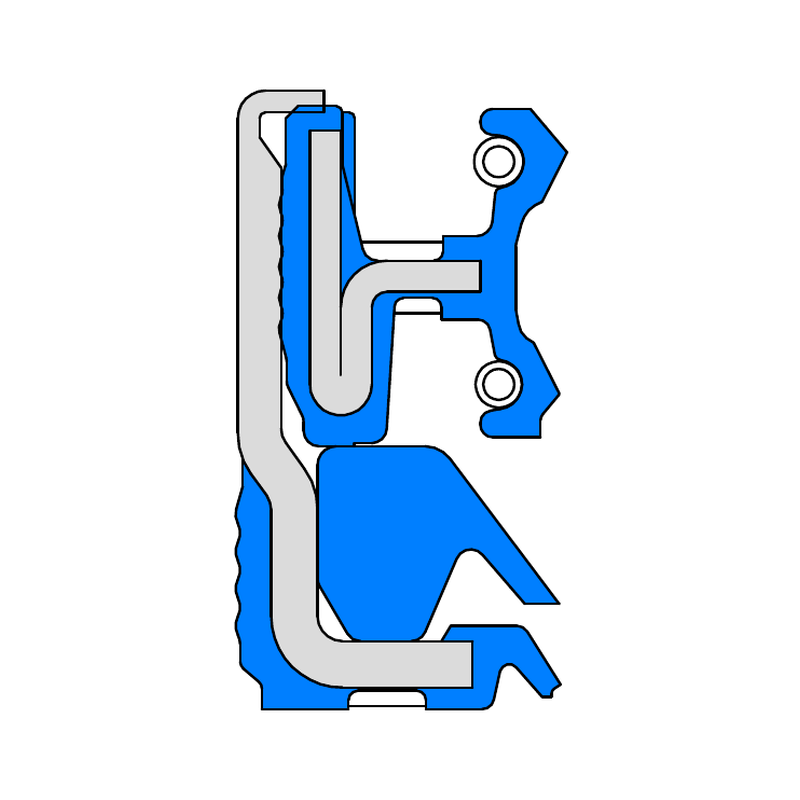

The inner seal, PU barrier ring, and outer seal are press-fitted as one assembly to simplify installation. An elastomer dust lip, reinforced PU dust lip, and spring-loaded lip greatly improve contamination resistance for harsh environments and applications with significant axial reciprocating motion.

Applications:Drive shafts in agricultural or industrial machinery; wheel-end seals on agricultural axles; hubs, pinion shafts, axle shafts, and other drivetrain locations on commercial-vehicle axles

Sealing media:Lubricating oil and similar media

Lip materials:

NBR (-40°C to 120°C)
FKM (-20°C to 201°C)

Surface speed:NBR ≤ 8 m/s
FKM ≤ 15 m/s

Pressure:Max. 0.5 bar
