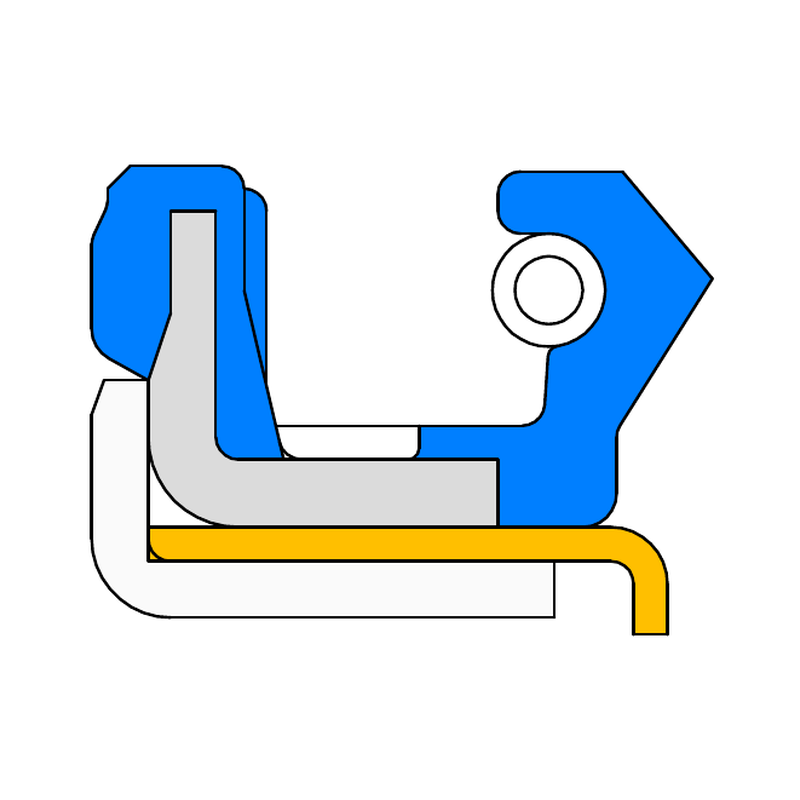

A combination of conductive rubber and conductive PTFE provides both sealing and electrical conductivity, preventing electrical bearing corrosion at its source and significantly extending motor and gearbox life. It addresses oil sealing and shaft-current protection simultaneously, eliminating the space and cost of accessories such as grounding brushes and simplifying the assembly.

Applications:High-speed motors, electric drive units

Sealing media:Transmission oil, gear oil

Lip materials:

NBR (-40°C to 120°C)
FKM (-20°C to 200°C)

Surface speed:Maximum forward surface speed ≤ 40 m/s

Pressure:Max. 0.3 bar
